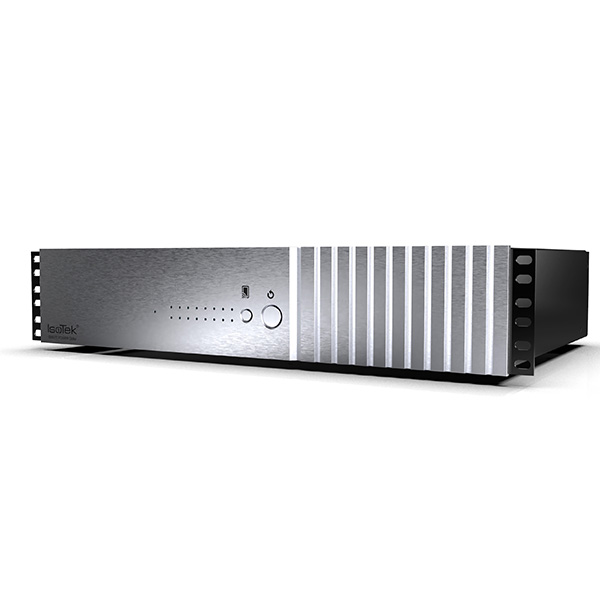

IsoTek SMART Delta – Smart Power Distribution Unit

Programmable power management

The Smart Power Delta combines a 16-fold mains filter, which can be programmed via the RS232 interface, LAN and WLAN, and a power strip in a very small space. In just two height units for rack mounting (89 mm), 16 C14 IEC output sockets are available for connecting audio and home cinema components. The connected devices are protected against current surges of up to 54,000 A and are supplied with current that has been cleaned of interference. Connection to the mains socket is via a standard IEC C20 connection. The Delta reduces differential and common mode mains noise, with each output jack being independently filtered to avoid cross-contamination with the other connected devices. The Delta also integrates with Control 4 and Crestron smart home systems.

FEATURES

– Naming of the individual output sockets with connected electronics
– Each output can be switched on and off individually
– Remote reboot and sequential boot
– Programmable delay times between each output at start
– Independent control of outputs with date and time
– Combination of two or more units into named groups
– Power consumption overview and management
– Protection against power surges and voltage spikes
– Power cleaning network and RFI reduction of 45 dB
– Control via RS232, LAN and WiFi via secure online interface and dedicated codex for Control 4 and Crestron

TECHNICAL SPECIFICATIONS

NUMBER OF OUTPUTS 16
AVAILABLE OUTPUTS C14 IEC
SYSTEM LINK 1
POWER SUPPLY 16A IEC C20
OPERATING VOLTAGE 100-240 V / 50-60 Hz
CURRENT 16 A
(CONTINUOUS) POWER, TOTAL 3,680 W (@230 V) / 1,840 W (@115 V)
OVERVOLTAGE PROTECTION 54,000 A
RS232 CONTROLLER 1
NETWORK CONTROLLER (RJ45) 1
USER INTERFACE (GUI) Yes
