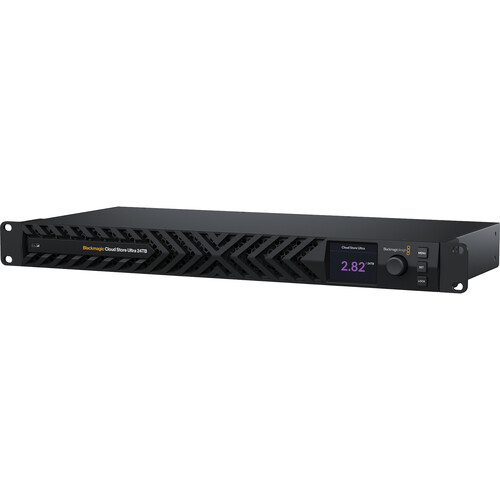

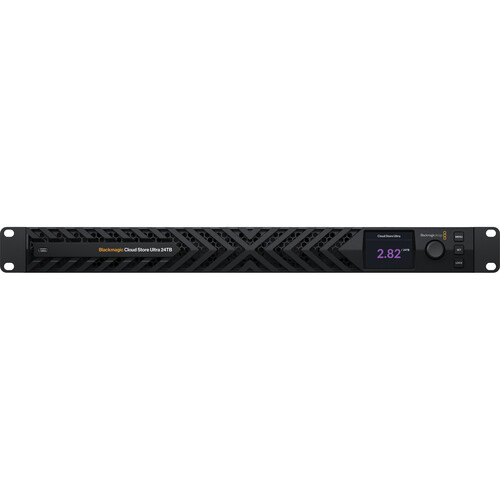

Blackmagic Cloud Store Ultra 24TB is an extremely high-performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. Cloud Store Ultra features 24TB capacity 12-card RAID 0 flash memory core, 2 x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C and Blackmagic Cloud Sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time.

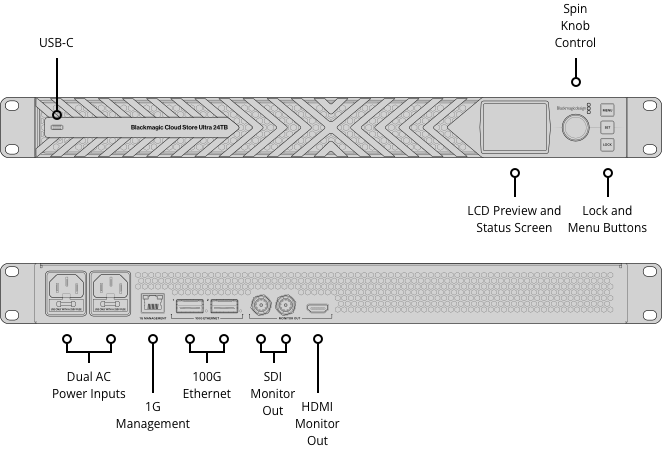

Connections
100G Ethernet Networks: 2 x 100G QSFP28 connections.
Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch.
Please click here to view supported QSFP28 modules.
1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.
SDI Monitor Outputs: 2
HDMI Monitor Outputs: 1
SDI Rates: 1.5G, 3G.
Computer Interface: 1 x USB-C for Cloud Store Setup utility and software updates.
Power: 2 x IEC C14 power inputs.
