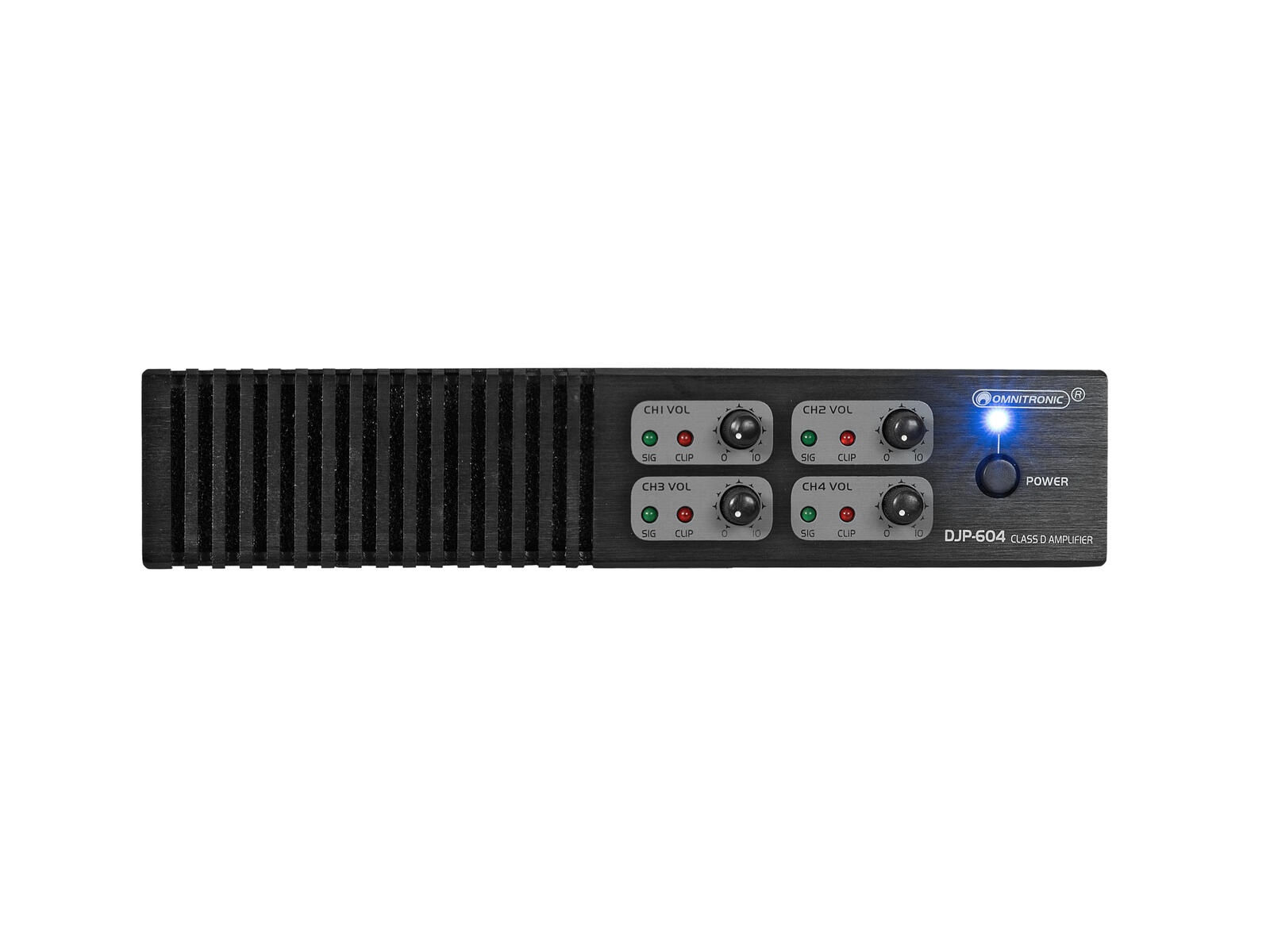

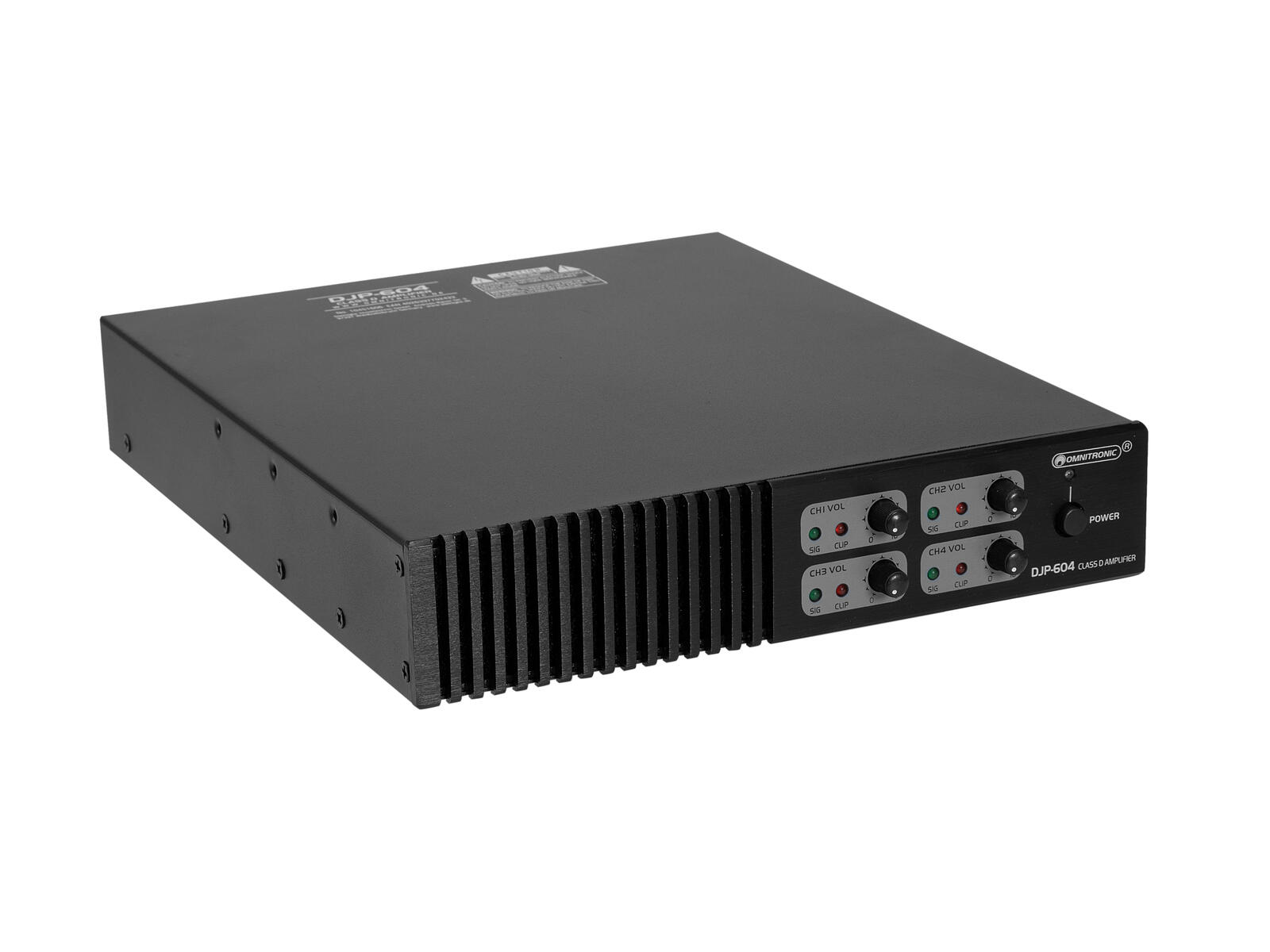

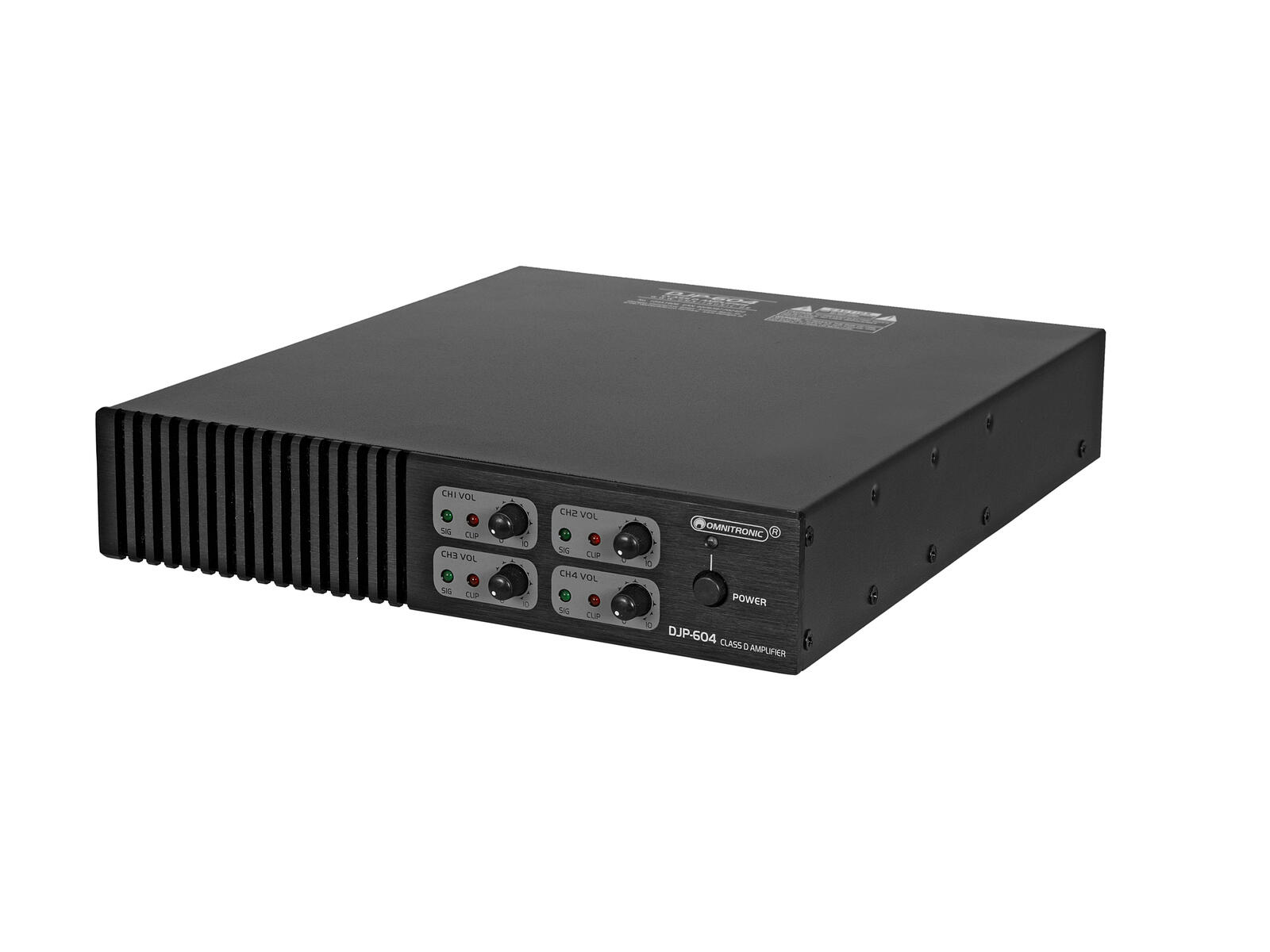

Omnitronic DJP-604 4-channel Class D Amplifier

341.00 € (inc tax)

Extremely low weight and height due to integrated switch mode power supply
Level control per channel
Inputs linkable for flexible configuration
Rugged steel chassis with aluminum front panel
Desktop console housing
(19″) 48.3 cm rack installation possible
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms

In stock

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	185 W 1/8 power
Output power:	4 x 150 W RMS (4 ohms) 4 x 80 W RMS (8 ohms)
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 – 20.000 Hz
S/N ratio:	>105 dB
Impedance:	Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Housing color:	Black
Circuitry:	Class D
Slew rate:	20 V/µs
Damping factor:	>300
Control elements:	Power switch, level control per channel
Controls:	Softstart; short-circuit; overheat; overload; VHF; DC voltage
Status LED:	Power, signal, clip

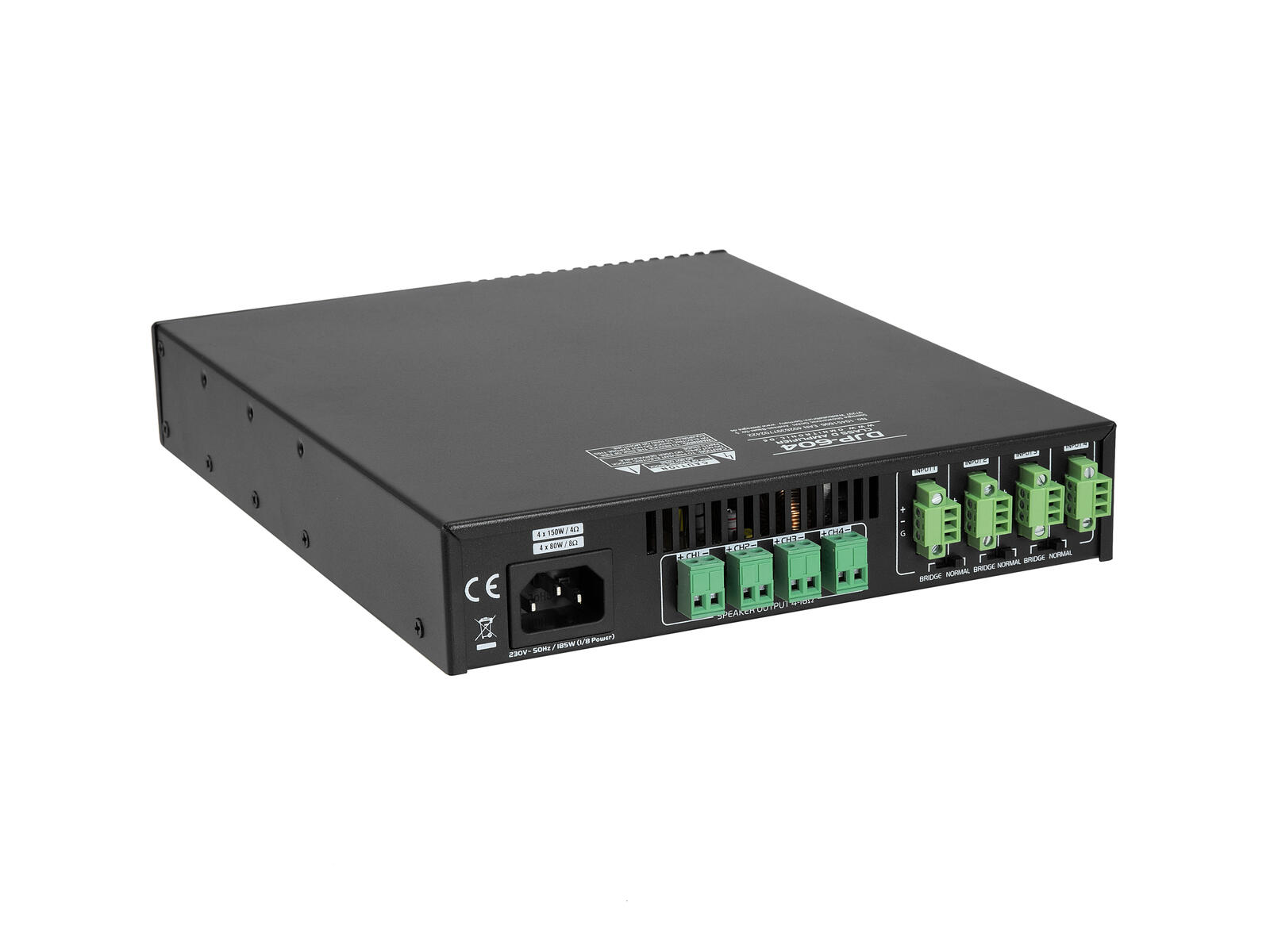

Connections:	Input: line via 4 x screw plug-in terminal Output: speaker via 4 x screw plug-in terminal
Material:	Metal
Housing design:	Desktop console housing (19″) 48.3 cm rack installation possible
Dimensions:	Width: 21.4 cm Depth: 26.5 cm Height: 4.4 cm
Weight:	2.46 kg

Weight	2.46 kg
Dimensions	21.4 × 26.5 × 4.4 cm
